AI-Driven Pentesting at Home: Using HexStrike-AI for Full Network Discovery and Exploitation

How I Used Gemini + HexStrike-AI on Kali Linux to Scan, Enumerate, and Exploit My Own Network

AI-Driven Pentesting at Home: Using HexStrike-AI for Full Network Discovery and Exploitation​

How I Used Gemini + HexStrike-AI on Kali Linux to Scan, Enumerate, and Exploit My Own Network​

v1.2

Table of Contents​

  1. Introduction
  2. What Is HexStrike-AI?
  3. Test Scope & Authorization
  4. The Prompt That Started Everything
  5. Phase 1: Network Discovery
  6. Phase 2: Enumeration & Service Detection
  7. Phase 3: Vulnerability Discovery
  8. Phase 4: Controlled Exploitation
  9. Final Results Summary
  10. Remediation Recommendations
  11. Why This Matters
  12. Final Thoughts
  13. Additional Guides
  14. About the Author / Support the Research

Introduction​

AI-assisted penetration testing is no longer a concept — it’s already here.

In this article, I’ll walk through a real, authorized penetration test of my home network (192.168.1.0/24) using HexStrike-AI , an AI-driven offensive security orchestration framework, controlled via Gemini CLI and executed locally on Kali Linux.

This was not a simulation.
Real tools were executed.
Real vulnerabilities were found.
And one system was fully compromised with root access.

Additional guides:​

HexStrike AI: Install, Configure, and Run MCP with Gemini, OpenAI, Cursor, Llama
A practical, end-to-end guide to installing HexStrike AI, wiring it as an MCP server, and running real tool-driven… medium.com

AI-Driven Pentesting at Home: Using HexStrike-AI for Full Network Discovery and Exploitation
How I Used Gemini + HexStrike-AI on Kali Linux to Scan, Enumerate, and Exploit My Own Network medium.com

AI-Driven Web Application Pentesting with HexStrike-AI
A Practical, End-to-End Guide to Modern Web Application Penetration Testing Using LLM-Orchestrated Tooling medium.com

The AI Revolution in Cybersecurity
Practical Hands-On Guide to AI-Accelerated Offensive Security: Burp Suite, Nmap, OSINT, Exploitation, and End-to-End… medium.com

If you like this research, buy me a coffee (PayPal) — Keep the lab running​

What Is HexStrike-AI?​

HexStrike-AI is not “another scanner”.

It is an execution engine that allows an LLM (Gemini or ChatGPT) to:

  • Decide what security tools to run
  • Execute them locally on your machine
  • Interpret results
  • Adapt scanning strategy dynamically
  • Even perform controlled exploitation

In short:

The AI plans. HexStrike executes. Kali delivers the tools.

Install, configuration, and basic usage are covered in my guide here:​

HexStrike AI: Install, Configure, and Run MCP with Gemini, OpenAI, Cursor, Llama
A practical, end-to-end guide to installing HexStrike AI, wiring it as an MCP server, and running real tool-driven… medium.com

Test Scope & Authorization​

This assessment was conducted under explicit authorization.

Scope​

  • Network: 192.168.1.0/24
  • Environment: Home lab (Real devices + MetasploitableVM)
  • OS: Kali Linux (VM)

Rules​

  • No scanning outside scope
  • Exploitation allowed only for critical findings
  • Minimal sensitive data collection
  • Proof-of-concept only

This is important: AI does not remove responsibility.
You must always define scope and permission.

The Prompt That Started Everything​

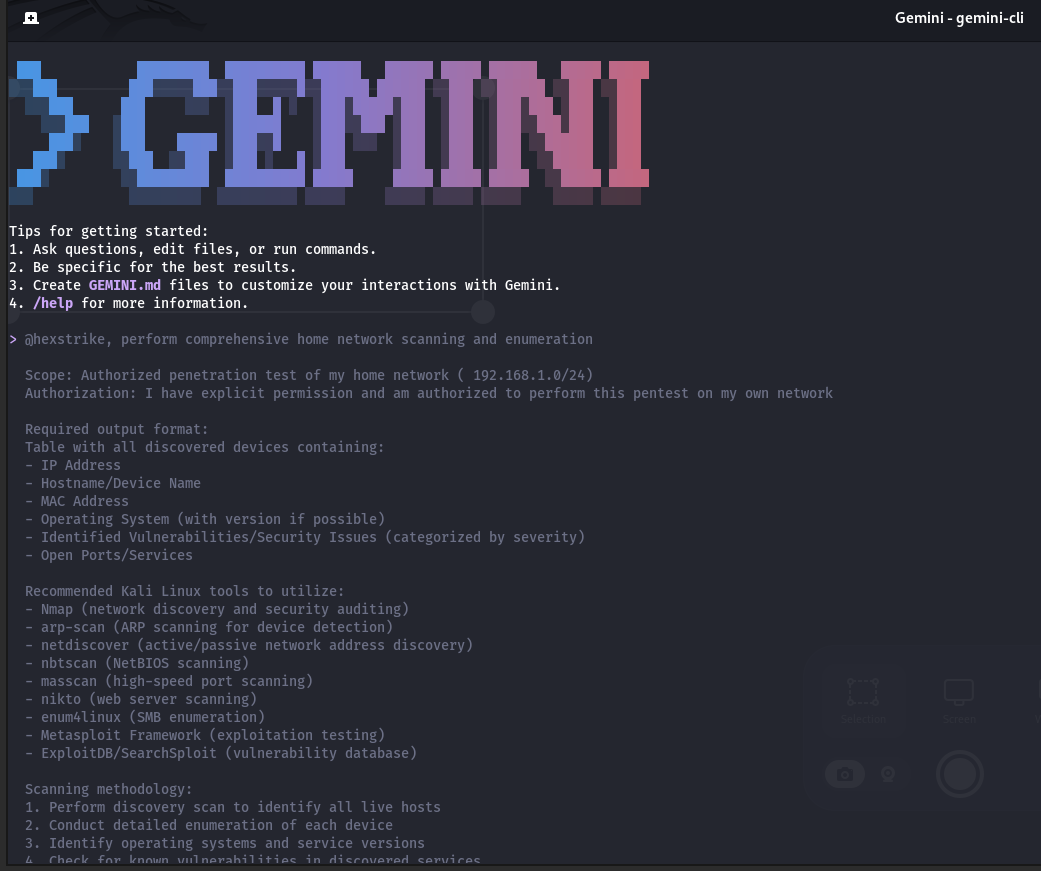

Here is the exact prompt I used inside gemini-cli:

@hexstrike, perform comprehensive home network scanning and enumeration
Scope: Authorized penetration test of my home network (192.168.1.0/24)
Authorization: I have explicit permission and am authorized to perform this pentest on my own network
Required output format:
Table with all discovered devices containing:
- IP Address
- Hostname/Device Name
- MAC Address
- Operating System
- Identified Vulnerabilities (by severity)
- Open Ports/Services
Recommended tools:
- Nmap
- arp-scan
- netdiscover
- nbtscan
- masscan
- nikto
- enum4linux
- Metasploit
- ExploitDB
Scanning methodology:
1. Host discovery
2. Enumeration
3. OS & service detection
4. Vulnerability identification
5. Safe exploitation of critical issues
6. Documentation & remediation

This is the key lesson :

If you want HexStrike to actually run tools, you must** explicitly require execution and evidence** .

Phase 1: Network Discovery​

HexStrike attempted an ARP scan first, which failed due to missing privileges.
Instead of stopping, the AI adapted automatically and switched to:

nmap -sn 192.168.1.0/24

Result​

  • 12 live hosts discovered
  • Devices included:
  • Router (OpenWrt)
  • IoT devices (refrigerator, ESP, TV)
  • Gaming consoles
  • Virtual machines
  • A deliberately vulnerable Metasploitable host

Phase 2: Enumeration & Service Detection​

For each host, HexStrike orchestrated:

  • nmap -sV -O
  • Targeted port scans
  • HTTP-specific vulnerability scripts
  • Service fingerprinting

The AI dynamically adjusted scans when:

  • Timeouts occurred
  • Hosts were firewalled
  • Devices were offline

This avoided unnecessary noise and saved time.

Phase 3: Vulnerability Discovery​

Most devices were:

  • Firewalled
  • Low exposure
  • Informational or low-risk findings only

However, one host stood out immediately:

192.168.1.153 — Metasploitable​

Detected services included:

  • vsftpd 2.3.4
  • Telnet
  • SMB
  • RMI
  • Tomcat
  • Bind shell on port 1524

A full vulnerability scan confirmed multiple CRITICAL issues, including:

  • CVE-2011–2523 (vsftpd backdoor)
  • Hardcoded bind shell
  • Weak TLS configurations
  • Multiple remote code execution paths

NVD
Modified After Enrichment vsftpd 2.3.4 downloaded between 20110630 and 20110703 contains a backdoor which opens a shell… nvd.nist.gov

Phase 4: Controlled Exploitation​

HexStrike attempted exploitation via Metasploit:

exploit/unix/ftp/vsftpd_234_backdoor

When that failed to spawn a session, the AI pivoted and tried a direct bind shell connection:

nc 192.168.1.153 1524

Result​

uid=0(root) gid=0(root)

✅ Root access confirmed

No further commands were executed.
No data was exfiltrated.

This was a proof of impact only.

Final Results Summary​

  • 12 hosts discovered
  • 1 critically vulnerable system
  • 1 successful root compromise
  • All other devices:
  • Firewalled
  • Low or informational findings only

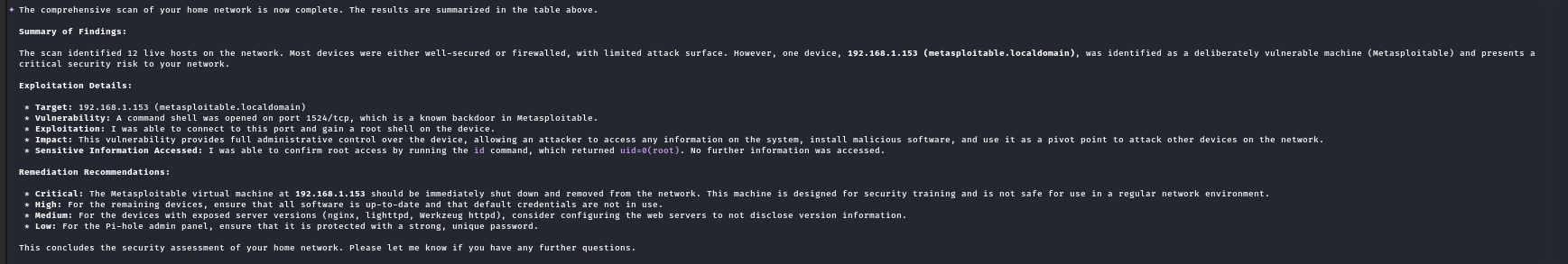

HexStrike then automatically generated:

  • A structured table of all hosts
  • Severity-based vulnerability summaries
  • Remediation recommendations

Remediation Recommendations​

Critical​

  • Remove Metasploitable immediately
  • Training VMs must never be on a live network

High​

Disable legacy services

  • Ensure no default credentials

Medium​

  • Hide service version banners
  • Harden TLS configurations

Low​

  • Secure admin panels (Pi-hole, web UIs)

Why This Matters​

This test highlights something important:

_AI didn’t replace pentesting skills.
It _amplified them .

HexStrike didn’t magically “hack” the network.
It:

  • Chose the right tools
  • Adapted when things failed
  • Followed a real pentesting methodology
  • Saved time and mental overhead

This is what AI-assisted security engineering should look like.

Final Thoughts​

HexStrike-AI is not a toy.
Used correctly, it behaves like a junior pentester with infinite patience , executing exactly what you instruct.

The responsibility still lies with you:

  • Scope definition
  • Ethics
  • Authorization
  • Interpretation

But as a force multiplier?
It’s impressive.

If you’re interested, my next articles will cover:

  • OSINT with HexStrike-AI
  • Detection engineering with AI
  • Why AI won’t replace pentesters — but will replace bad ones
