Telemetry Requirements

Purpose

Define the logs, fields, retention, and quality needed before a hunt or detection can be trusted.

Practitioner-Level Explanation

Detection quality depends on telemetry quality. A good CTI-derived detection states exactly which data sources and fields are required, what retention is needed, and where visibility gaps exist. Write telemetry requirements before detection logic, not after. Logic written against fields that do not exist is not detection — it is a placeholder.

Field-Level Telemetry Reference

The tables below list the data sources most commonly required for endpoint, network, identity, and cloud hunts. Every field must be validated in your environment before it appears in production detection logic.

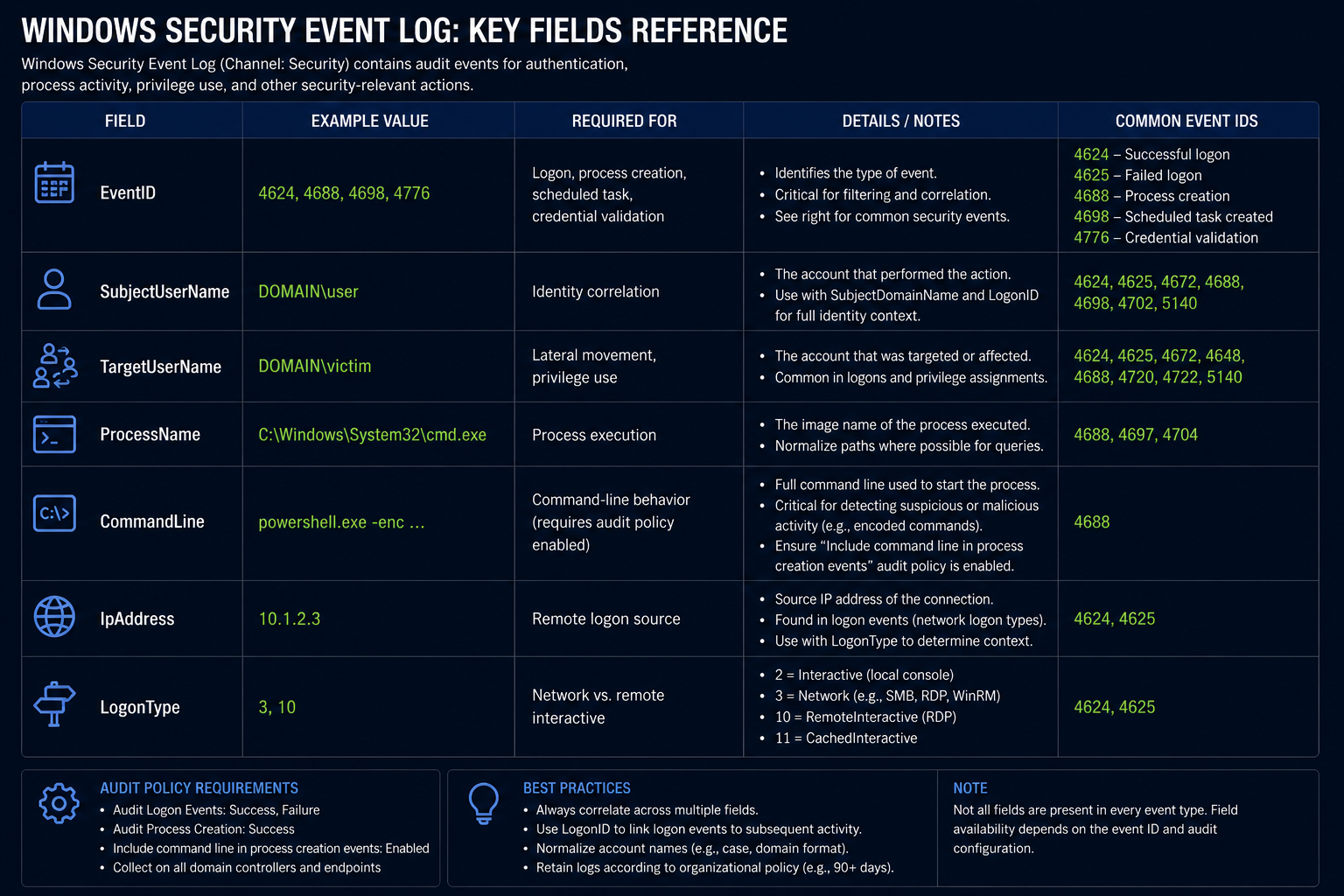

Windows Security Event Log

Field	Example Value	Required For
EventID	4624, 4688, 4698, 4776	Logon, process creation, scheduled task, credential validation
SubjectUserName	DOMAIN\user	Identity correlation
TargetUserName	DOMAIN\victim	Lateral movement, privilege use
ProcessName	C:\Windows\System32\cmd.exe	Process execution
CommandLine	powershell.exe -enc ...	Command-line behavior (requires audit policy enabled)
IpAddress	10.1.2.3	Remote logon source
LogonType	3, 10	Network vs. remote interactive

Common gap: CommandLine is not logged by default on most Windows versions. Requires Audit Process Creation with command-line inclusion via GPO or registry.

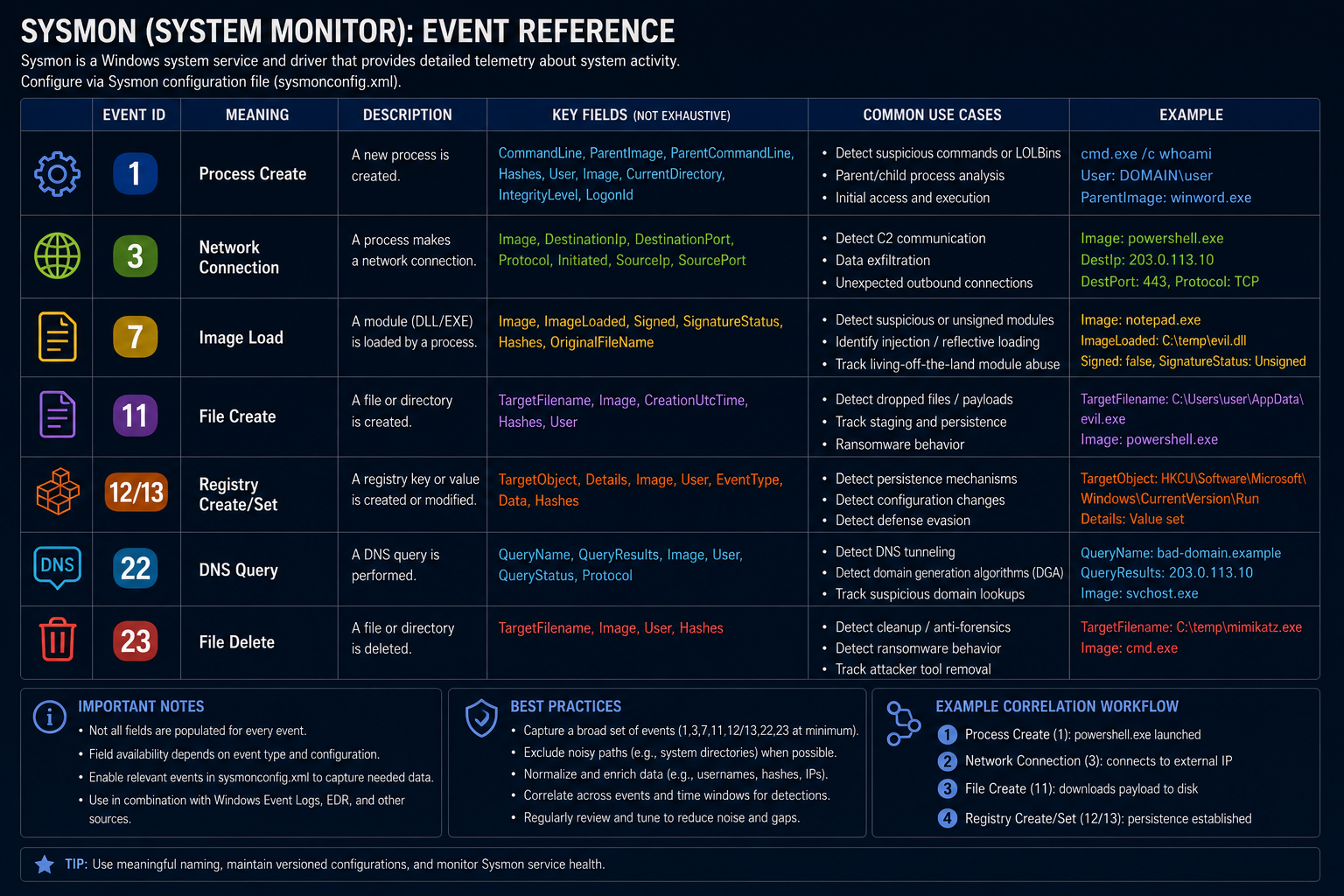

Sysmon (System Monitor)

EventID	Meaning	Key Fields
1	Process Create	CommandLine, ParentImage, ParentCommandLine, Hashes, User
3	Network Connection	Image, DestinationIp, DestinationPort, Protocol
7	Image Load	Image, ImageLoaded, Signed, SignatureStatus
11	File Create	TargetFilename, Image
12/13	Registry Create/Set	TargetObject, Details
22	DNS Query	QueryName, QueryResults, Image
23	File Delete	TargetFilename

Common gap: Sysmon is not deployed by default. Configuration must enable the required event types and filters. Noisy rules without filters will generate excessive volume and cause tuning paralysis.

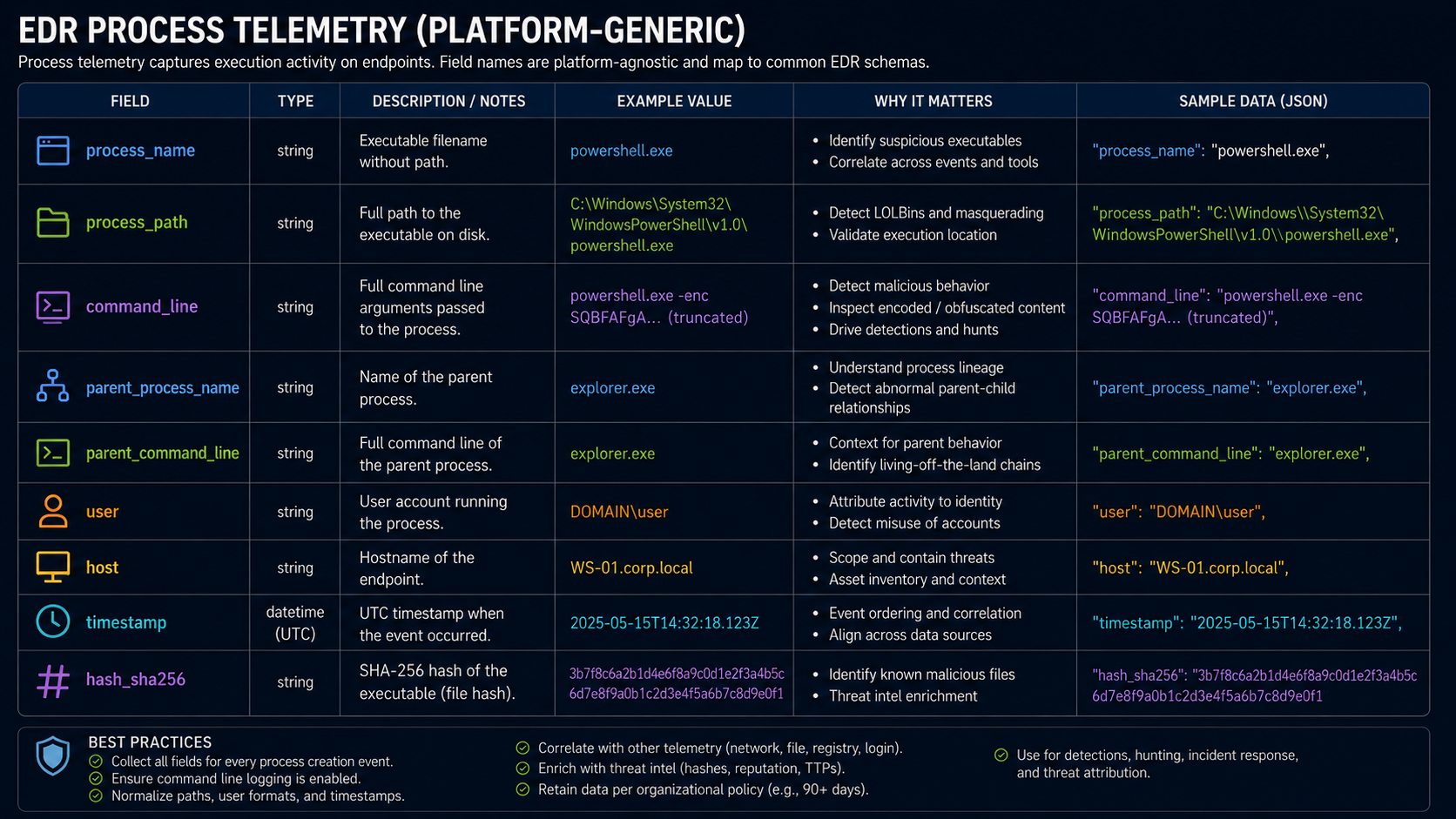

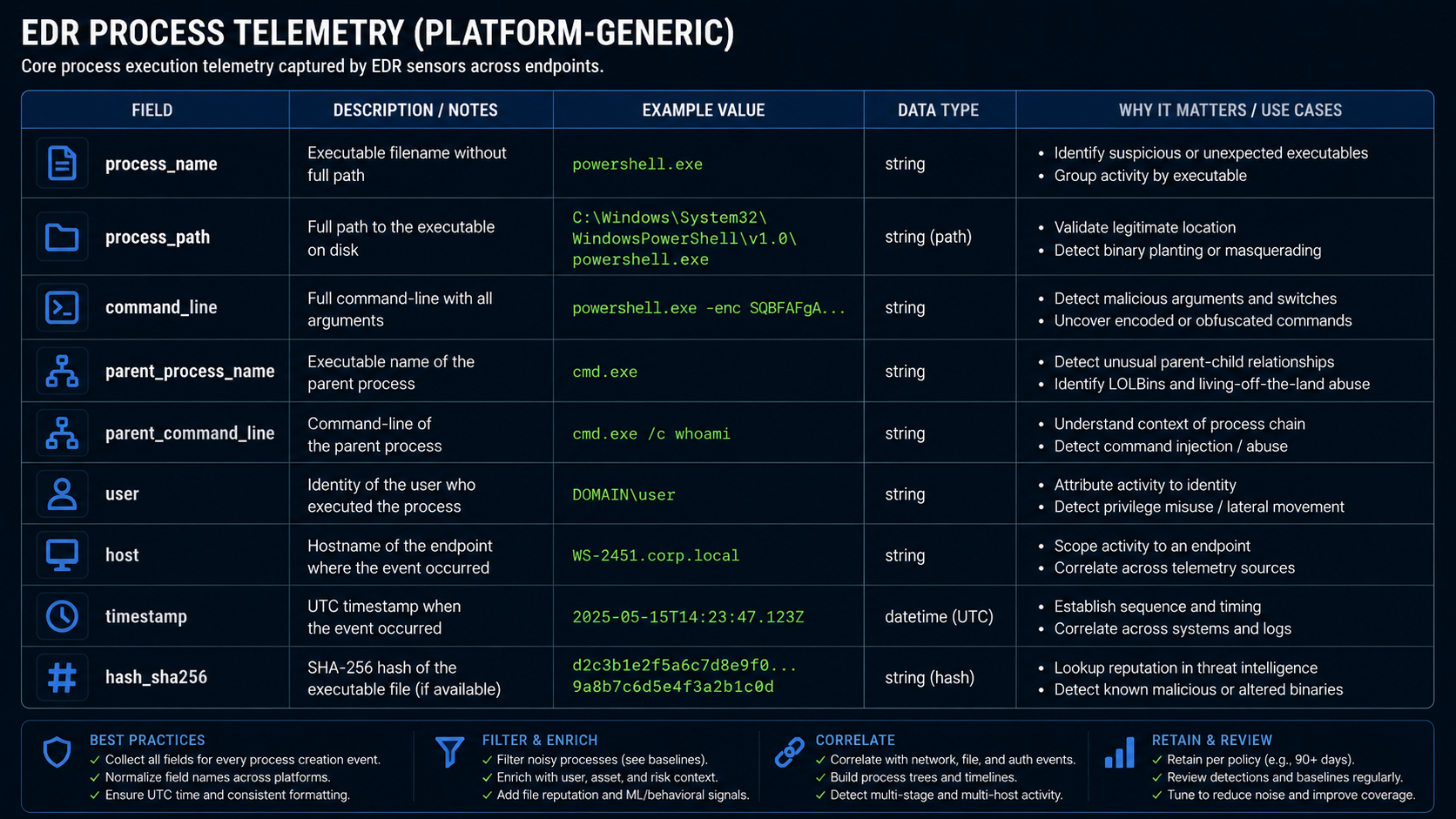

EDR Process Telemetry (platform-generic)

Field	Notes
process_name	Executable filename
process_path	Full executable path
command_line	Full argument string
parent_process_name	Parent executable
parent_command_line	Parent argument string
user	Executing identity
host	Endpoint hostname
timestamp	UTC timestamp of event
hash_sha256	File hash for threat-intel lookup

Common gap: Parent process chain may not be available in all EDR configurations. Verify whether your EDR records grandparent process context.

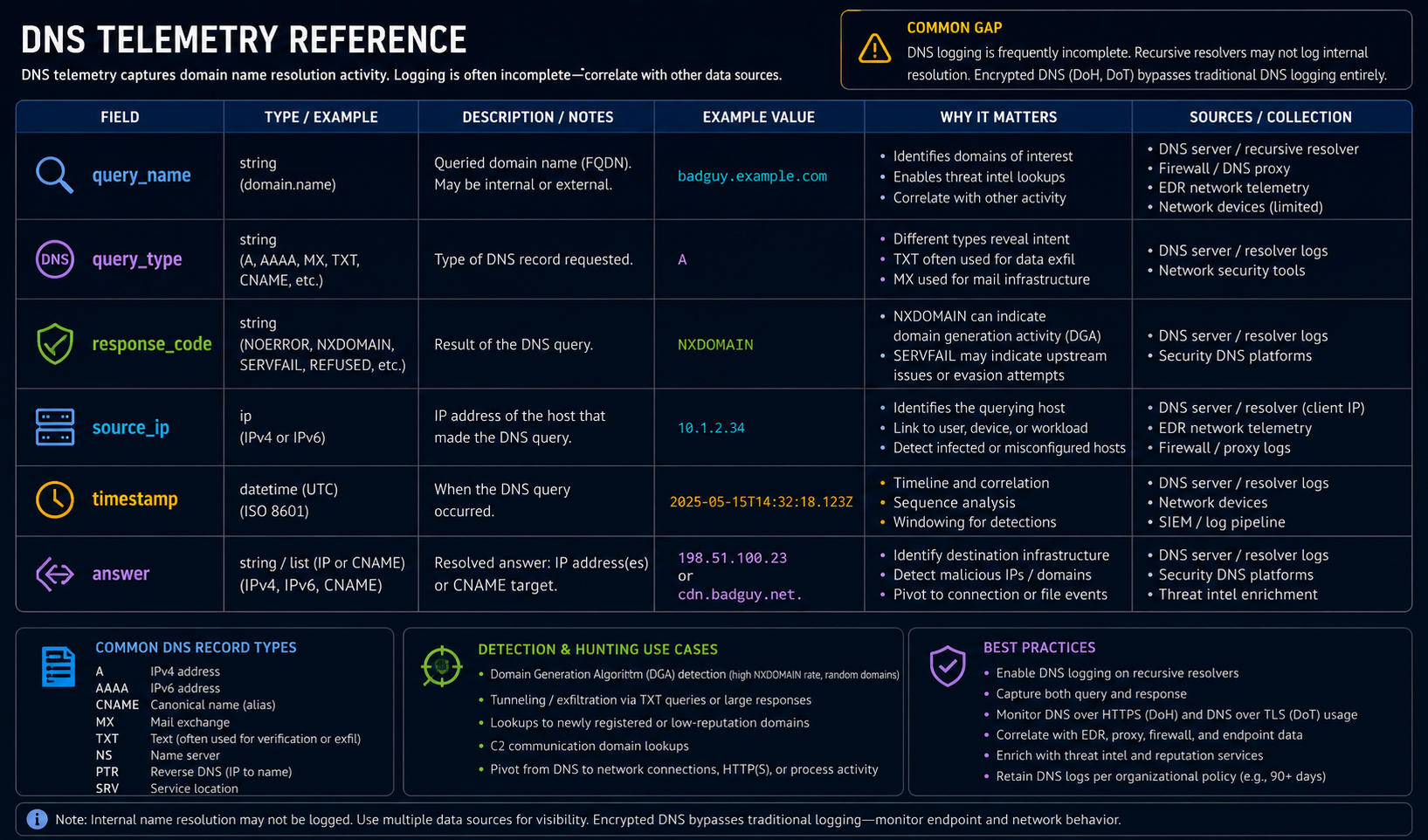

DNS Telemetry

Field	Notes
query_name	Queried domain name
query_type	A, AAAA, MX, TXT, CNAME
response_code	NOERROR, NXDOMAIN, SERVFAIL
source_ip	Querying host
timestamp	Query time (UTC)
answer	Resolved IP or CNAME

Common gap: DNS logging is frequently incomplete. Recursive resolvers may not log internal resolution. Encrypted DNS (DoH, DoT) bypasses traditional DNS logging entirely.

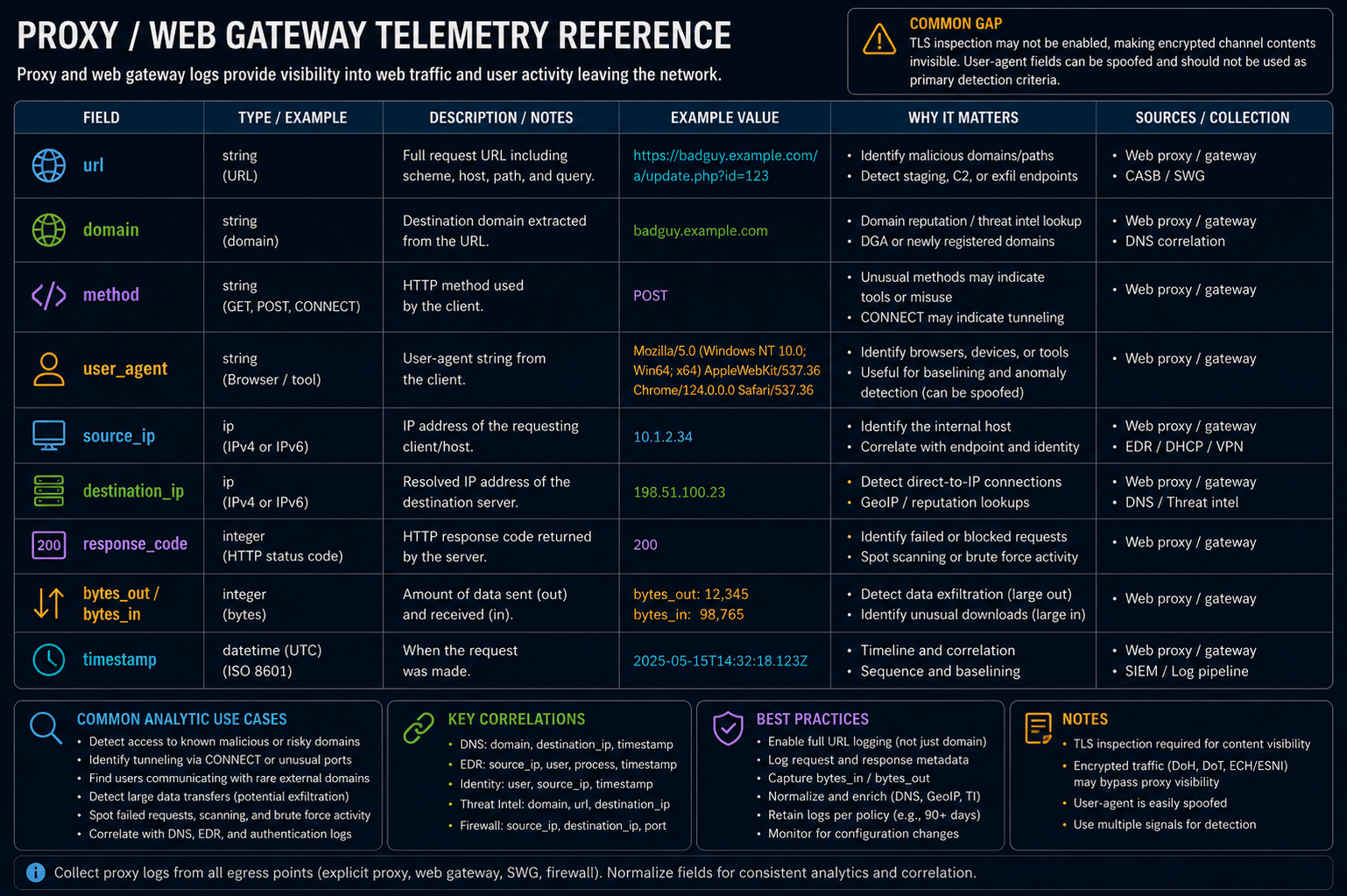

Proxy / Web Gateway

Field	Notes
url	Full request URL
domain	Destination domain
method	GET, POST, CONNECT
user_agent	Browser or tool identifier
source_ip	Requesting host
destination_ip	Resolved server IP
response_code	HTTP response code
bytes_out / bytes_in	Data volume
timestamp	Request time (UTC)

Common gap: TLS inspection may not be enabled, making encrypted channel contents invisible. User-agent fields can be spoofed and should not be used as primary detection criteria.

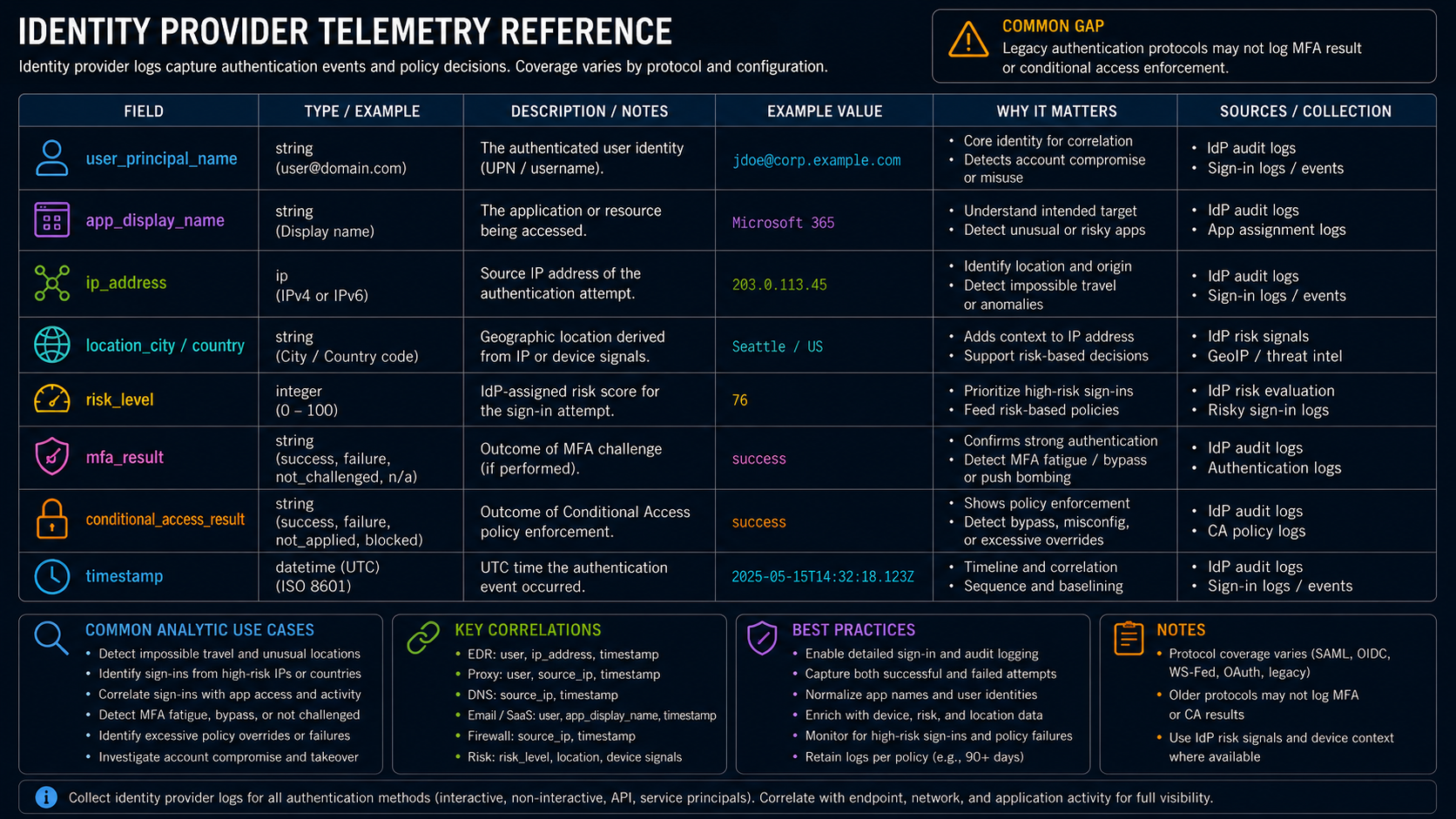

Identity Provider (Entra ID / Okta / similar)

Field	Notes
user_principal_name	Authenticating identity
app_display_name	Target application
ip_address	Source IP of authentication
location_city / country	Geographic context
risk_level	IdP-assigned risk score
mfa_result	MFA challenge outcome
conditional_access_result	Policy enforcement outcome
timestamp	Authentication time (UTC)

Common gap: Legacy authentication protocols may not log MFA result or conditional access enforcement.

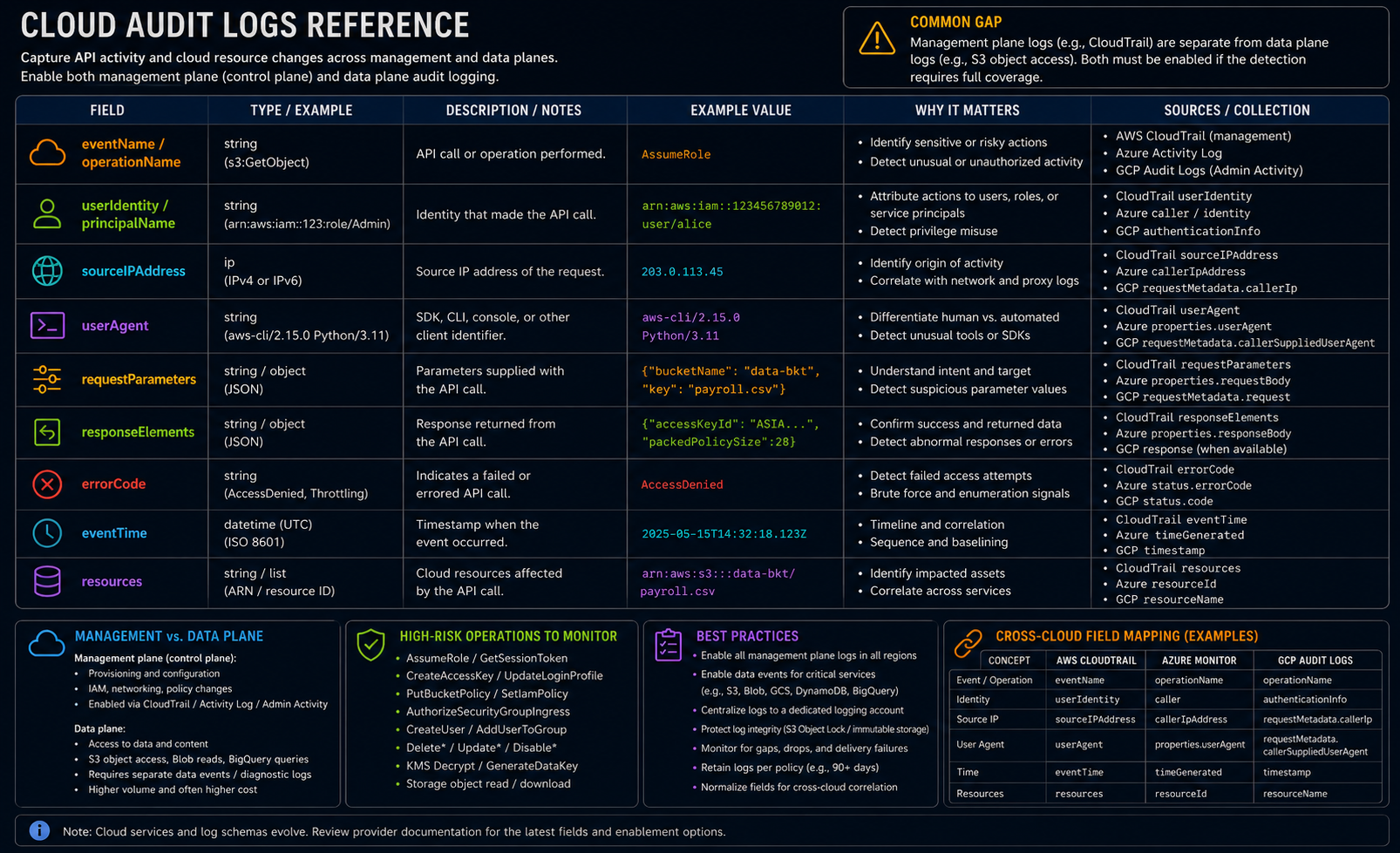

Cloud Audit Logs (AWS CloudTrail / Azure Monitor / GCP Audit Logs)

Field	Notes
eventName / operationName	API call or operation
userIdentity / principalName	Calling identity
sourceIPAddress	Source IP
userAgent	SDK, CLI, or console identifier
requestParameters	API call parameters
responseElements	API call response
errorCode	Failed call indicator
eventTime	Timestamp (UTC)
resources	Affected resource ARN/ID

Common gap: Management plane logs (e.g., CloudTrail) are separate from data plane logs (e.g., S3 object access). Both must be enabled if the detection requires full coverage.

CTI Relevance

This prevents detection engineering from building fragile rules against unavailable, inconsistent, or low-quality data. Every detection candidate must identify which data source, which fields, and what retention window are required before the rule is drafted.

Common Mistakes

• Assuming fields are available because the data source exists.
• Using generic field names without platform-specific validation.
• Skipping retention and latency checks.
• Building detection logic before confirming command-line or parent-process fields are populated.
• Treating DNS or proxy logs as complete when TLS or DoH is in use.

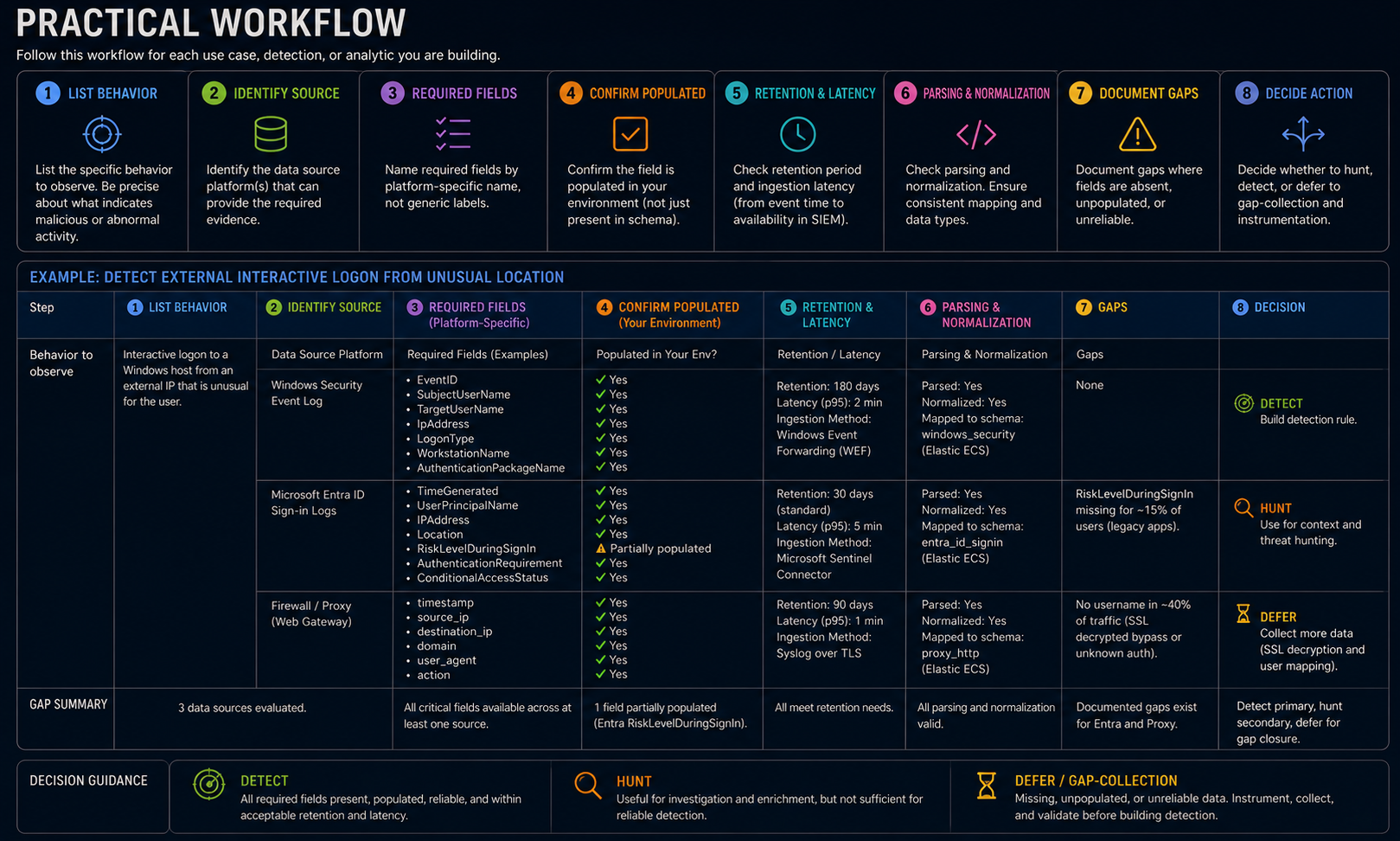

Practical Workflow

1. List the specific behavior to observe.
2. Identify the data source platform.
3. Name required fields by platform-specific name, not generic label.
4. Confirm field is populated in your environment (not just present in schema).
5. Check retention period and latency.
6. Check parsing and normalization.
7. Document gaps where fields are absent, unpopulated, or unreliable.
8. Decide whether to hunt, detect, or defer to gap-collection.

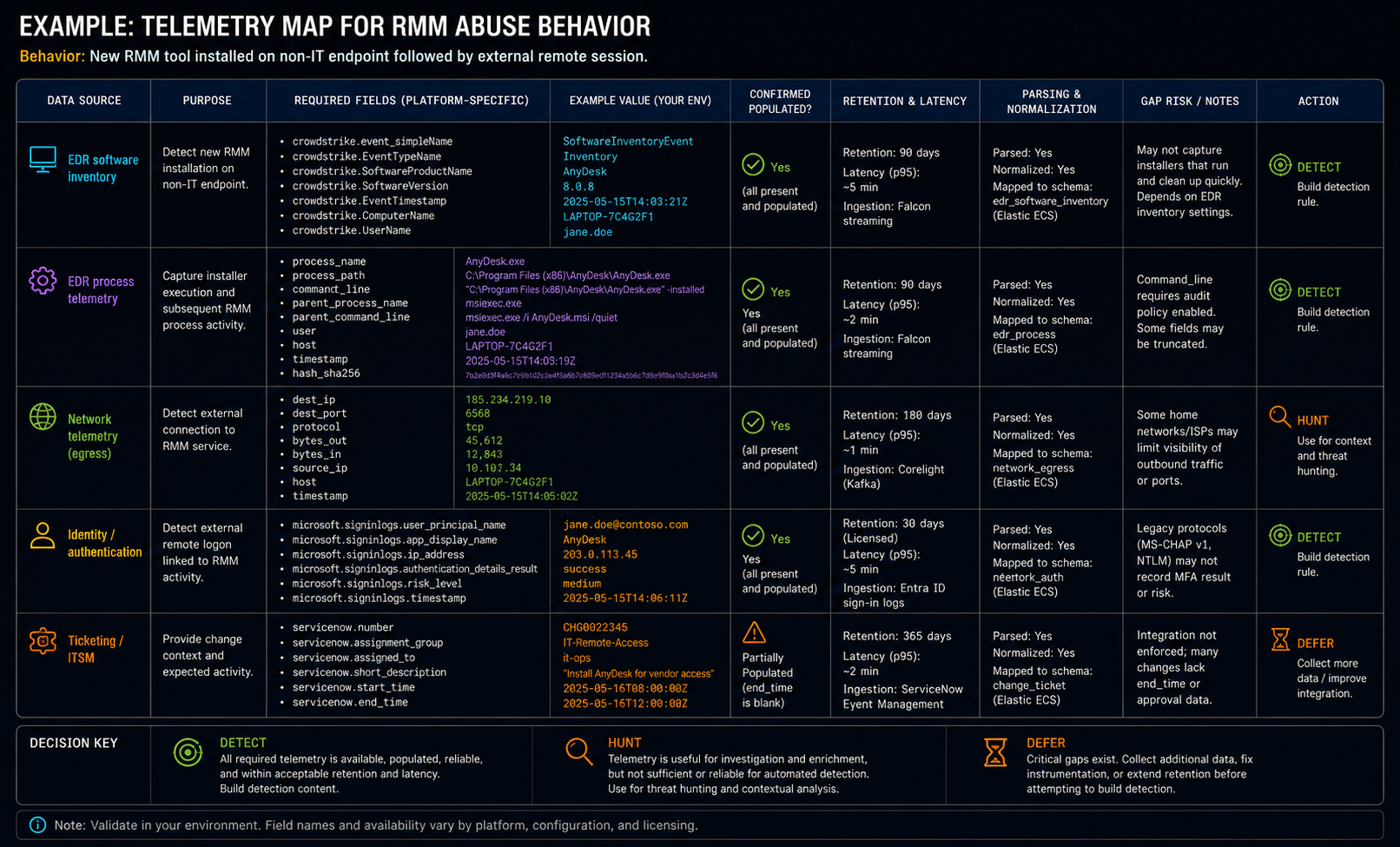

Example: Telemetry Map for RMM Abuse Behavior

Behavior: New RMM tool installed on non-IT endpoint followed by external remote session.

Data Source	Required Fields	Gap Risk
EDR software inventory	product_name, install_time, host, user	May not capture all installers; depends on EDR policy
EDR process	process_name, parent_process_name, command_line, user	Parent chain required; command_line must be enabled
Network	destination_ip, destination_port, bytes_out, protocol, host	Egress logging coverage may be incomplete
Identity	user_principal_name, logon_time, source_ip, mfa_result	Legacy auth may not record MFA result
Ticketing	ticket_id, assigned_host, change_window	Integration with EDR required for automated correlation

Analyst Checklist

• Is each required field validated as populated in the target environment?
• Is retention sufficient for the lookback window?
• Are command-line and parent-process fields confirmed?
• Are encrypted channel or DoH gaps documented?
• Is a gap registered for any required field that is missing?
• Is readiness level honest?

Output Artifact

Behavior:
Data Source:
Platform:
Required Fields (platform-specific):
Confirmed Populated: Yes / No / Unknown
Retention:
Latency:
Normalization:
Known Gaps:
Decision: Hunt / Detect / Defer
