CVSS as Evidence for Regulatory Vulnerability Management

15. Using CVSS as Evidence for Regulatory Vulnerability Management

CVSS is not a regulatory framework

CVSS is a vulnerability severity scoring system, not a compliance framework. PCI DSS, HIPAA, NIS2, NERC CIP, and NIST RMF are regulatory frameworks. CVSS-BTE scoring can provide documented, auditable evidence for vulnerability management decisions within those frameworks — but CVSS itself does not define the regulatory requirements. Per the CVSS v4.0 User Guide: "CVSS measures severity, not risk."

The CVSS v4.0 lifecycle (CVSS-B → CVSS-BT → CVSS-BTE) maps well to a regulatory vulnerability management maturity model. This structure was proposed by Rob Arnold (Acorn Pass / CVSS Associates) in the whitepaper "Enhancing National Cyber Resilience: CVSS v4.0 as a Regulatory Framework" (2025), and adapted here as a practical guide for security programs seeking to satisfy regulatory evidence requirements.

The 5 Phases + SCRM Track

Phase	Name	CVSS Level	Timeframe	Objective
1	Socialization	—	Pre-program	Organization is aware of CVSS; training in place
2	Self-Evaluation	CVSS-B	Months 1–12	Remediate all Critical (Base ≥ 9.0)
3	External Validation	CVSS-B	Months 12–24	Remediate all High (Base ≥ 7.0); audit verifies
4	Threat Awareness	CVSS-BT	Months 24–36	Integrate threat intel; remediate by CVSS-BT priority
5	Environmental Context	CVSS-BTE	Months 36+	Full BTE scoring with auditable documentation
SCRM	Supply Chain	CVSS-BTE	Concurrent from Phase 2	Embed CVSS requirements in supplier contracts

The Gaming Prevention Problem

At Phase 5, CVSS-BTE scores can be lower than CVSS-B. This creates an incentive: organizations might manipulate Environmental metrics to claim compliance while leaving real vulnerabilities unaddressed.

The regulatory countermeasure:

Auditors verify environmental claims against evidence:

• MAV:A claimed → auditor validates against firewall rules, network diagrams, penetration test results
• MAC:H claimed → auditor validates against policy documents, VPN logs, MFA enrollment records
• MSC:N claimed → auditor validates against network topology and egress controls

Auditors verify response to changing E metrics:

• If E:U was set last quarter and the CVE just entered CISA KEV, did the organization detect this change?
• Did they update the E metric from U to A?
• Did they escalate the remediation priority accordingly?

The principle from the FIRST.org guide: CVSS-BTE scores are defensible precisely because they are documented and auditable. An organization cannot reduce a score without leaving an evidence trail that auditors can verify.

Regulatory Applications by Framework

Regulatory Framework	CVSS Requirement	How CVSS v4.0 Helps
PCI DSS v4.0	Risk-based patching; scan + remediate findings	CVSS-BTE for cardholder data environment scope
NIST RMF (SP 800-53)	Vulnerability scanning + prioritized remediation	CVSS-B as baseline; BTE for System Security Plan
NIS2 (EU)	Incident reporting + vulnerability management	CVSS-BTE documents risk decisions for supervisory authority
HIPAA	Risk analysis + risk management	CVSS-BTE with CR:H for PHI-handling systems
NERC CIP (OT/ICS)	Vulnerability management for bulk electric systems	CVSS-BTE with S:P supplemental for safety systems

Supply Chain CVSS (SCRM Track)

Organizations at Phase 5 embed CVSS requirements in supplier contracts:

Example supplier contract language:

1. The Supplier shall disclose CVSS v4.0 Base vectors for all
   vulnerabilities in delivered software within 5 business days
   of CVE publication.

2. The Supplier shall provide software updates or documented
   mitigations sufficient to enable the Buyer to achieve a
   CVSS-BTE score of ≤ Medium (6.9) for all High or Critical
   Base vulnerabilities.

3. The Supplier shall include CVSS v4.0 vectors for all known
   vulnerabilities in all Software Bills of Materials (SBOMs).

4. The Supplier shall notify the Buyer within 24 hours if any
   vulnerability in delivered software enters the CISA KEV catalog.

---

16. Supplemental Metrics: The Overlooked Context Layer

Supplemental metrics do not change the CVSS score. They add human-readable operational context that the numeric score cannot capture. Think of them as structured analyst notes attached to the vulnerability record.

Metric	Symbol	Values	What It Communicates
Safety	S	N/P	Physical safety impact possible? Relevant for OT, medical devices, vehicles
Automatable	AU	N/Y	Can exploitation be fully automated (worm-like mass exploitation)?
Recovery	R	A/U/I	Automatic / User-assisted / Irrecoverable
Value Density	V	D/C	Diffuse (one system affected) / Concentrated (many systems/users affected)
Vuln Response Effort	RE	L/M/H	Effort required to patch/mitigate: Low (auto-update), Medium (manual), High (complex)
Provider Urgency	U	Clear/Green/Amber/Red	Vendor's urgency assessment

AU:Y — Automatable Exploitation

AU:Y means an attacker can script the exploit to run against thousands of targets without human intervention. This is the worm-capability indicator.

Why it matters beyond the CVSS score:

Log4Shell (AU:Y) was being exploited by automated scanners within 24 hours of POC release. A CVSS-BTE score of 7.4 High with AU:Y requires faster response than an 8.0 High with AU:N that requires a custom, targeted attack chain.

Real examples with AU:Y:

• Log4Shell (CVE-2021-44228) — AU:Y: log any HTTP request, mass exploitation immediate
• MOVEit Transfer (CVE-2023-34362) — AU:Y: Cl0p ran fully automated campaign
• HTTP/2 Rapid Reset (CVE-2023-44487) — AU:Y: DDoS amplification automated
• Heartbleed (CVE-2014-0160) — AU:Y: automated scanners ran within hours

S:P — Safety Impact in OT/Medical

S:P (Safety: Present) flags that exploitation could result in physical harm to people or property. This metric is essential for:

• Industrial control systems (chemical plants, power grids, water treatment)
• Medical devices (infusion pumps, ventilators, pacemakers)
• Automotive systems (ECU vulnerabilities)

Example: Vulnerability in a pharmaceutical manufacturing control system
CVSS-BTE score: 5.9 Medium (due to MAV:A environmental adjustment)
Supplemental: /S:P (Safety: Present)

Without S:P context, this looks like a 90-day scheduled patch.
With S:P context, the medical device safety team must evaluate whether
the vulnerability could cause incorrect dosing, batch contamination,
or equipment failure — potentially regardless of the numeric CVSS score.

R:I — Irrecoverable Systems

R:I (Recovery: Irrecoverable) means successful exploitation causes permanent damage that cannot be remediated without hardware replacement, data restoration from backup, or destructive re-imaging.

Relevant scenarios:

• Ransomware affecting backup systems (R:I — cannot restore without the backups)
• Firmware corruption on embedded devices (R:I — requires physical device replacement)
• Cryptographic key material theft (R:I — compromised keys cannot be "un-stolen")
• Industrial control setpoint modification causing equipment damage (R:I — physical damage)

---

Mapping Your Program to the 5-Phase Model

Use this self-assessment to determine your current phase and the next milestone:

Phase 1 — Socialization:
  □ Security team has received CVSS v4.0 training
  □ Leadership is aware that Base scores ≠ risk
  □ A vulnerability management policy exists (even if informal)

Phase 2 — Self-Evaluation:
  □ Vulnerability scanner deployed, producing CVE lists with Base scores
  □ All Critical (CVSS-B ≥ 9.0) tracked and remediated within SLA
  □ CVE inventory maintained (even in a spreadsheet)
  Milestone: Zero unaddressed Criticals older than 90 days

Phase 3 — External Validation:
  □ All High (CVSS-B ≥ 7.0) tracked with SLA
  □ Process verified by external auditor or internal audit team
  □ Documented exception process for vulnerabilities that cannot be patched
  Milestone: Third-party confirmation that Critical and High backlogs are managed

Phase 4 — Threat Awareness:
  □ CISA KEV API checked for all new CVEs (automated)
  □ EPSS scores pulled and used to set E: metric
  □ CVSS-BT scores used for prioritization (not just CVSS-B)
  □ Threat intel source documented (KEV, EPSS, ExploitDB, commercial TI)
  Milestone: Remediation prioritization is driven by CVSS-BT, not CVSS-B alone

Phase 5 — Environmental Context:
  □ Asset inventory with network zone classification exists
  □ Environmental metrics (MAV/MAC/CR/IR/AR) applied per asset group
  □ Each adjustment backed by documented evidence (firewall rules, policy IDs)
  □ Environmental reviews tied to change management process
  □ CVSS-BTE scores used for SLA assignment and audit reporting
  Milestone: Full audit trail from CVE publication to documented remediation decision

SCRM Track (parallel):
  □ Supplier contracts require CVSS v4.0 vectors in vulnerability disclosures
  □ SBOM requirements reference CVSS scoring
  □ Supplier notification required within 24h of KEV entry

---

Audit Evidence Checklist (Phase 5)

When a regulatory auditor asks to verify your CVSS-BTE scores, they will want:

Claim	Evidence Required
MAV:A — system is not internet-facing	Firewall rule ID + last verified date + network diagram reference
MAC:H — compensating access controls	VPN policy document + MFA enrollment logs + change ticket ID
MSC:N — no subsequent system paths	Network egress rules + architecture diagram showing no lateral paths
CR:L — low confidentiality requirement	Asset classification document + data inventory showing no PII/PHI
E:U — no exploit evidence	KEV check timestamp + EPSS score + ExploitDB search result (negative)
E:A → score escalation	KEV entry date + updated CVSS-BT score + new SLA assignment date

---

Related Chapters

Chapter	What you'll find

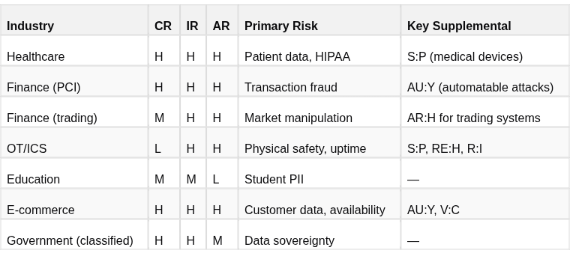

Industry-Specific Scoring	Profiles for healthcare, finance, OT/ICS
Threat & Environmental Metrics	How each environmental adjustment is made and documented
Practical VM Workflow	The operational process that generates regulatory evidence
Common Mistakes	What breaks compliance — especially Mistake 4 (undocumented adjustments)
