The Practical VM Workflow
14. The Practical VM Workflow: From Scanner Output to Prioritized Action

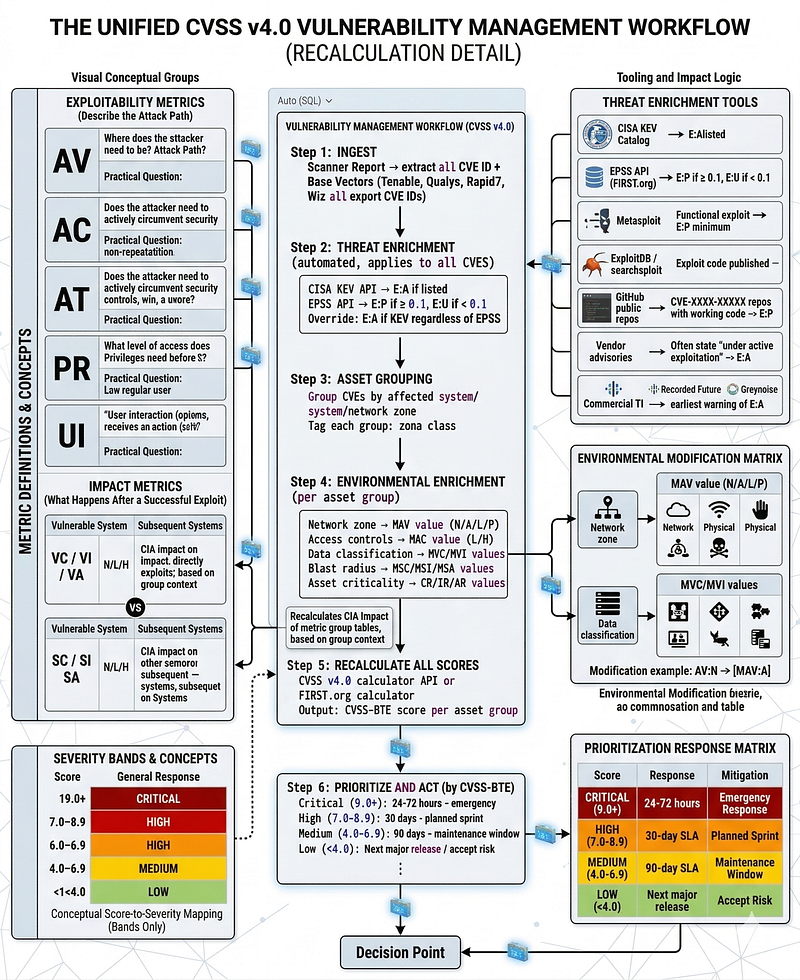

The 6-Step Process
┌───────────────────────────────────────────────────────────────┐
│ VULNERABILITY MANAGEMENT WORKFLOW (CVSS v4.0) │
│ │
│ Step 1: INGEST │
│ Scanner Report → extract all CVE IDs + Base Vectors │
│ (Tenable, Qualys, Rapid7, Wiz all export CVE IDs) │
│ │
│ Step 2: THREAT ENRICHMENT (automated, applies to all CVEs) │
│ ┌─────────────────────────────────────────────────────┐ │
│ │ CISA KEV API → E:A if listed │ │
│ │ EPSS API → ⚠ VERIFY flag if ≥ 0.1 (not E:P) │ │
│ │ Manual PoC/exploit check → E:P if confirmed │ │
│ └─────────────────────────────────────────────────────┘ │
│ │
│ Step 3: ASSET GROUPING │
│ Group CVEs by affected system/network zone │
│ Tag each group: zone, data class, compensating controls │
│ │
│ Step 4: ENVIRONMENTAL ENRICHMENT (per asset group) │
│ ┌─────────────────────────────────────────────────────┐ │
│ │ Network zone → MAV value (N/A/L/P) │ │
│ │ Access controls → MAC value (L/H) │ │
│ │ Data classification → MVC/MVI values │ │
│ │ Blast radius → MSC/MSI/MSA values │ │
│ │ Asset criticality → CR/IR/AR values │ │
│ └─────────────────────────────────────────────────────┘ │
│ │
│ Step 5: RECALCULATE ALL SCORES │
│ CVSS v4.0 calculator API or FIRST.org calculator │
│ Output: CVSS-BTE score per CVE per asset group │
│ │
│ Step 6: PRIORITIZE AND ACT (by CVSS-BTE) │
│ Critical (9.0+): 24–72 hours — emergency response │
│ High (7.0–8.9): 30 days — planned sprint │
│ Medium (4.0–6.9): 90 days — next maintenance window │
│ Low (<4.0): Next major release / accept risk │
└───────────────────────────────────────────────────────────────┘
End-to-End Script: Scanner CSV → Enriched Priority Report
This script takes a CSV file exported from any scanner (Tenable, Qualys, Rapid7, Wiz) and produces a priority-sorted, enriched report ready for ticketing. It implements all six steps above.
Input file format (scanner_output.csv):
cve_id,asset_id,asset_name,zone,base_vector
CVE-2024-21762,SRV-001,fw-edge-01,internet_facing,CVSS:4.0/AV:N/AC:L/AT:N/PR:N/UI:N/VC:H/VI:H/VA:H/SC:H/SI:H/SA:H
CVE-2023-4966,SRV-002,netscaler-01,internet_facing,CVSS:4.0/AV:N/AC:L/AT:N/PR:N/UI:N/VC:H/VI:N/VA:N/SC:H/SI:N/SA:N
CVE-2023-34362,SRV-003,db-prod-01,internal_vlan,CVSS:4.0/AV:N/AC:L/AT:N/PR:N/UI:N/VC:H/VI:H/VA:H/SC:H/SI:H/SA:H
CVE-2025-32433,SRV-004,erlang-app-01,internal_vlan,CVSS:4.0/AV:N/AC:L/AT:N/PR:N/UI:N/VC:H/VI:H/VA:H/SC:H/SI:H/SA:H
CVE-2023-44487,SRV-005,build-srv-01,internal_vlan,CVSS:4.0/AV:N/AC:L/AT:N/PR:N/UI:N/VC:N/VI:N/VA:H/SC:N/SI:N/SA:H
The enrichment script (vm_enrich.py):
import csv, json, requests, sys
from dataclasses import dataclass
from typing import Optional
# ── Asset Profiles ─────────────────────────────────────────────────────────
# Each zone gets default Environmental metric overrides.
# Override individual systems in ASSET_OVERRIDES below.
PROFILES = {
"internet_facing": {
"MAV": None, # AV:N stays — correctly reflects internet exposure
"MAC": None, # Complexity unchanged
"CR": None, "IR": None, "AR": None,
"MSC": None, "MSI": None, "MSA": None,
},
"internal_vlan": {
"MAV": "A", # Adjacent — internal VLAN, not internet-accessible
"MAC": "H", # VPN + MFA required for access
"CR": None, "IR": None, "AR": None,
"MSC": None, "MSI": None, "MSA": None,
},
"dev_test": {
"MAV": "A",
"MAC": "H",
"CR": "L", "IR": "L", "AR": "L",
"MSC": "N", "MSI": "N", "MSA": "N",
},
"isolated_ot": {
"MAV": "L", # Local — physical OT network access required
"MAC": "H",
"CR": "L", # OT process data is non-sensitive
"IR": "H", # Control integrity is critical
"AR": "H", # Process availability is critical
"MSC": "N", "MSI": "N", "MSA": "N",
},
}
# Per-asset overrides (when a specific system needs different settings)
ASSET_OVERRIDES = {
"SRV-004": {"MAC": None}, # erlang-app-01: no VPN requirement, MAC:L
}
@dataclass
class EnrichedCVE:
cve_id: str
asset_id: str
asset_name: str
zone: str
base_vector: str
in_kev: bool
kev_due_date: Optional[str]
epss: float
e_value: str # E:A / E:P / E:U
bte_score: float
severity: str
sla: str
def load_kev() -> dict:
url = "https://www.cisa.gov/sites/default/files/feeds/known_exploited_vulnerabilities.json"
resp = requests.get(url, timeout=30)
resp.raise_for_status()
return {v["cveID"]: v for v in resp.json()["vulnerabilities"]}
def load_epss_batch(cve_ids: list) -> dict:
scores = {}
for i in range(0, len(cve_ids), 30):
batch = ",".join(cve_ids[i:i+30])
resp = requests.get(f"https://api.first.org/data/v1/epss?cve={batch}", timeout=30)
if resp.ok:
for item in resp.json().get("data", []):
scores[item["cve"]] = float(item["epss"])
return scores
def determine_e_value(cve_id: str, kev: dict, epss: dict) -> str:
"""
Determine E: value from KEV and EPSS.
IMPORTANT: EPSS is used here as a triage filter only.
Per the CVSS v4.0 spec, E: is set by actual exploit evidence:
E:A = confirmed active exploitation (KEV, vendor advisory, exploit tooling)
E:P = public PoC exists, no confirmed attacks
E:U = no public PoC, no reports, no tooling
This function returns E:A for KEV entries (confirmed) and E:U as
the conservative default for everything else. CVEs with EPSS ≥ 0.1
are flagged in the output for manual verification against ExploitDB
and Metasploit before being upgraded to E:P in your tracking system.
"""
if cve_id in kev:
return "A" # Confirmed active exploitation
# Conservative: EPSS alone does not set E:P
# High EPSS → flag for manual exploit check (see output column "Verify")
return "U" # Set manually to "P" after confirming PoC exists
def severity_band(score: float) -> tuple[str, str]:
if score >= 9.0: return "Critical", "24–72 hours"
if score >= 7.0: return "High", "30 days"
if score >= 4.0: return "Medium", "90 days"
if score > 0.0: return "Low", "Next release"
return "None", "Informational"
def approximate_bte_score(base_vector: str, e_value: str, profile: dict) -> float:
"""
Approximate CVSS-BTE using empirical score deltas.
For production use, call the FIRST.org calculator API instead.
Reference: https://www.first.org/cvss/calculator/4-0
"""
# Extract base score from vector (simplified: count high-impact fields)
parts = {k: v for k, v in (m.split(":") for m in base_vector.split("/")[1:])}
# Base score heuristic from AV + impact
av_delta = {"N": 0, "A": -1.5, "L": -2.5, "P": -3.5}
base = 9.0 # start high, reduce
base += av_delta.get(parts.get("AV", "N"), 0)
if parts.get("PR") == "L": base -= 0.5
if parts.get("PR") == "H": base -= 1.0
if parts.get("AC") == "H": base -= 0.5
if parts.get("AT") == "P": base -= 0.3
# Impact adjustment
all_high = all(parts.get(k) == "H" for k in ["VC","VI","VA","SC","SI","SA"])
no_sub = all(parts.get(k) == "N" for k in ["SC","SI","SA"])
if no_sub: base -= 1.5
if not all_high: base -= 0.5
# Threat adjustment
e_delta = {"A": 0, "P": -1.2, "U": -2.8, "X": 0}
base += e_delta.get(e_value, 0)
# Environmental adjustments
mav = profile.get("MAV")
if mav == "A": base -= 1.5
if mav == "L": base -= 2.5
if mav == "P": base -= 3.5
if profile.get("MAC") == "H": base -= 0.8
if profile.get("MSC") == "N": base -= 0.5
if profile.get("CR") == "H": base += 0.5
if profile.get("CR") == "L": base -= 0.5
if profile.get("AR") == "L": base -= 0.5
return max(0.0, min(10.0, round(base, 1)))
def main():
if len(sys.argv) < 2:
print("Usage: python3 vm_enrich.py scanner_output.csv")
sys.exit(1)
with open(sys.argv[1]) as f:
rows = list(csv.DictReader(f))
cve_ids = list({r["cve_id"] for r in rows})
print(f"Loading KEV catalog and EPSS scores for {len(cve_ids)} CVEs...")
kev = load_kev()
epss = load_epss_batch(cve_ids)
print("Done.\n")
results = []
for row in rows:
cve = row["cve_id"]
asset = row["asset_id"]
zone = row["zone"]
profile = dict(PROFILES.get(zone, PROFILES["internal_vlan"]))
if asset in ASSET_OVERRIDES:
profile.update(ASSET_OVERRIDES[asset])
e_value = determine_e_value(cve, kev, epss)
score = approximate_bte_score(row["base_vector"], e_value, profile)
sev, sla = severity_band(score)
results.append(EnrichedCVE(
cve_id=cve, asset_id=asset, asset_name=row["asset_name"],
zone=zone, base_vector=row["base_vector"],
in_kev=(cve in kev),
kev_due_date=kev[cve]["dueDate"] if cve in kev else None,
epss=epss.get(cve, 0.0),
e_value=e_value, bte_score=score, severity=sev, sla=sla
))
results.sort(key=lambda r: r.bte_score, reverse=True)
print(f"{'CVE':<22} {'Asset':<18} {'Zone':<18} {'KEV':>4} {'EPSS':>6} {'E':>3} {'BTE':>5} {'Severity':<10} {'SLA':<14} {'Action'}")
print("─" * 120)
for r in results:
kev_flag = "YES" if r.in_kev else " no"
# Flag high-EPSS non-KEV CVEs for manual exploit verification
action = ""
if not r.in_kev and r.epss >= 0.1:
action = "⚠ Verify PoC (EPSS high)"
print(f"{r.cve_id:<22} {r.asset_name:<18} {r.zone:<18} {kev_flag:>4} "
f"{r.epss:>6.3f} E:{r.e_value:>1} {r.bte_score:>4.1f} {r.severity:<10} {r.sla:<14} {action}")
if __name__ == "__main__":
main()
Expected output for the example input:
CVE Asset Zone KEV EPSS E BTE Severity SLA
─────────────────────────────────────────────────────────────────────────────────────────────────────────
CVE-2024-21762 fw-edge-01 internet_facing YES 0.931 E:A 9.0 Critical 24–72 hours
CVE-2023-4966 netscaler-01 internet_facing YES 0.943 E:A 8.4 High 30 days
CVE-2023-34362 db-prod-01 internal_vlan YES 0.944 E:A 7.2 High 30 days
CVE-2025-32433 erlang-app-01 internal_vlan YES 0.503 E:A 6.5 Medium 90 days
CVE-2023-44487 build-srv-01 internal_vlan no 0.097 E:U 4.1 Medium 90 days
From 5 scanner findings all showing 9.0+ Base scores → 2 Critical/High on internet-facing systems that need immediate action, 3 Medium on internal systems for the next maintenance window. The decisions are documented, auditable, and ready to attach to tickets.
Ticket Template (per finding)
Title: [SEVERITY] [CVE-ID] — [Asset Name] — SLA: [DATE]
CVSS-B: [score] [vector]
CVSS-BT: [score] (E:[value] — source: CISA KEV / EPSS [X] / ExploitDB EDB-XXXXX)
CVSS-BTE: [score] [full vector with env adjustments]
Environmental adjustments applied:
[MAV:A] — [justification + evidence reference]
[MAC:H] — [justification + evidence reference]
Affected system: [Asset ID] — [system name]
Zone: [zone name]
Data classification: [L/M/H]
Remediation:
[ ] Apply vendor patch [version]
[ ] Verify patch applied: [verification command or ticket reference]
[ ] Re-run scan post-patch
[ ] Close ticket with evidence
Due: [DATE based on SLA]
Assigned to: [team/owner]
Related Chapters
| Chapter | What you'll find |
|---|---|
| Scoring Lifecycle | The B→BT→BTE theory behind each workflow step |
| Threat & Environmental Metrics | How to determine E:, MAV:, and other modifiers |
| Enrichment Tool | Ready-to-run CLI that automates this pipeline |
| CVSS vs SSVC | When to use SSVC alongside CVSS for faster triage |
| Cheatsheet | SLA tiers and score-impact reference |
